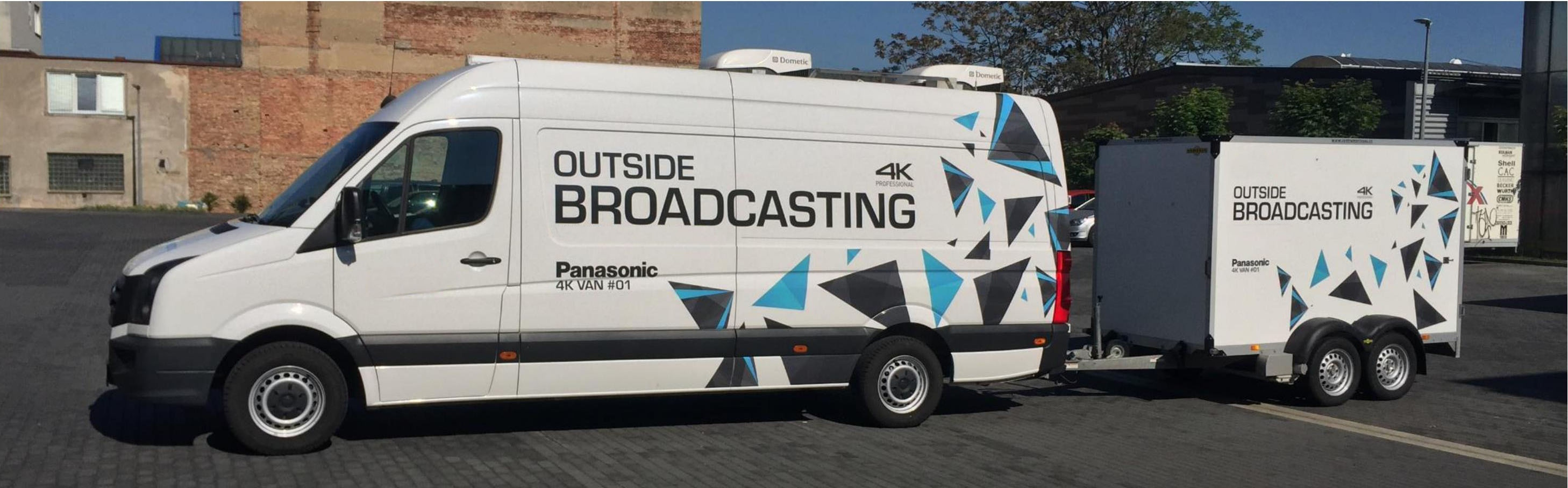

Outside broadcasting van 01

4K 50p production with maximum use of space

We have created in the OBVAN 01 newest technology concept with the emphasis on making the best use of avaiable space and the widest possibility of using for sports and cultural events, conferences, TV shows and other live events.

• multifunctional and most recent technology
• maximum flexibility
• latest generation Panasonic 4K Broadcast cameras with large ViewFinder
• hybrid camera cables with Lemo connectors
• 4K/3G/HD/SD multiformat production system
• 2 M/E switcher control panel
• digital audio mixer with external stageboxes
• fully backup technology
• four channel HD replay server
• 4K Caspar CG server with Alpha, web control and external data source provider

VEHICLE DATA	OB UNIT	SUPPORT VAN
Dimensions (L x W x H)	7,50 x 2,10 x 2,85m	6,00 x 2,10 x 2,80m
Space for production	8,50 x 3,80 x 2,85m	7,00 x 3,80 x 2,80m
Total weight	3.500 kg	3.500 kg
Power requirements	420V 32A CEE 5pin (up to 100m)	230V 10A CEE 3pin
License Plate	3SD2085	1TH6637

Complete Equipment buffered by two UPS units at full load about 10 minutes useable (without Air conditioner).

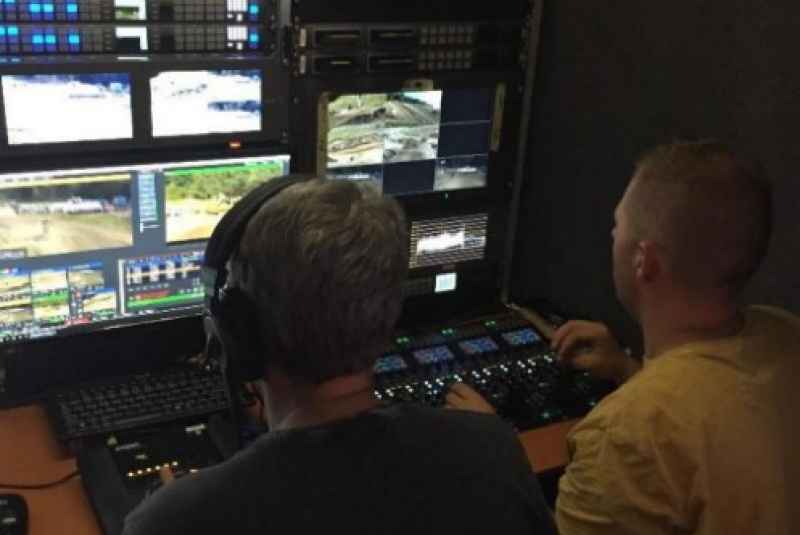

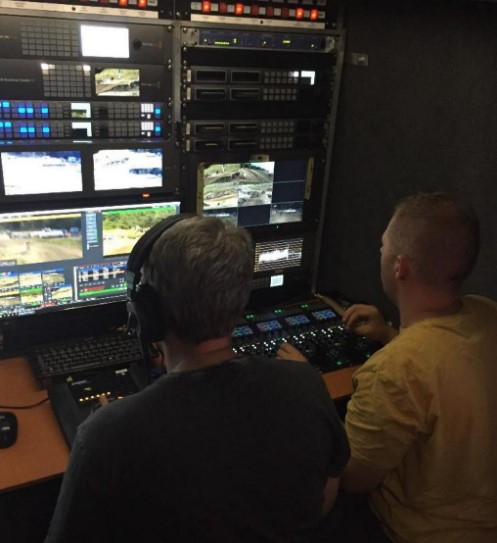

PRODUCTION AREA

• 1x 4K/3G/HD Multiformat 4 M/E Main Switcher Atem Broadcast Studio 4K
  • 20x 10-bit HD/Ultra HD 4K switchable Input
  • 3x 10-bit HD/Ultra HD 4K switchable Output
  • 6x 10-bit HD/Ultra HD 4K switchable AUX Output
  • 1x 10-bit (From Ultra HD 4K to HD) Down Converted SDI Program Output
  • SDI Rates 1.5G, 3G, 6G, 12G
  • 2x XLR, 2x RCA Audio Inputs, 2x XLR Program, 2x XLR Monitor Audio Outputs
  • 1x XLR Timecode IN, 1 x XLR Timecode OUT
  • Tri-Sync or Black Burst Reference Input
  • Automatic Re-sync on all 20 Inputs
  • 2x Multiview 10 Channels
  • HD Format Support: 720p50, 1080p25, 1080p50, 1080i50
  • Ultra HD Format Support: 2160p25, 2160p50
  • Video Sampling: 4:2:2, Color Space: REC 601, REC 709, REC 2020
  • 4x Upstream, 2x Downstream, 4x Chroma, 7x Linear/Luma Keyer
  • 1x Transition Keyer (Stinger/DVE), Total 13 Layers
  • 1x DVE with 3D Borders & Drop Shadow
  • 4x Media Player
• 1x 2 M/E Broadcast Panel
• 4x LG MU67 27" 4K/UHD Color LCD Monitor
• 2x LG 40XXX 40" 4K/UHD Color LCD Monitor for Multiview
• 1x CG server with web control and external data source provider FILL + KEY
• 4K/3G/HD/SD Multiformat 2 M/E Backup Switcher Atem Production Studio 4K
• Stereo Sound System Genelec 8010 ​

RECORDING

• 2x PGM recorder HyperDeck Studio 12G (PGM / CleanFeed)
• 6x HyperDeck Studio 12G
• 1x Four Channel HD Replay Server

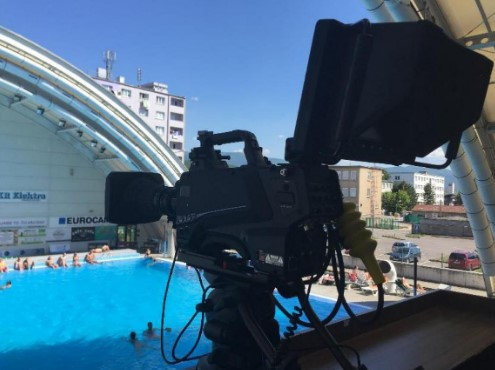

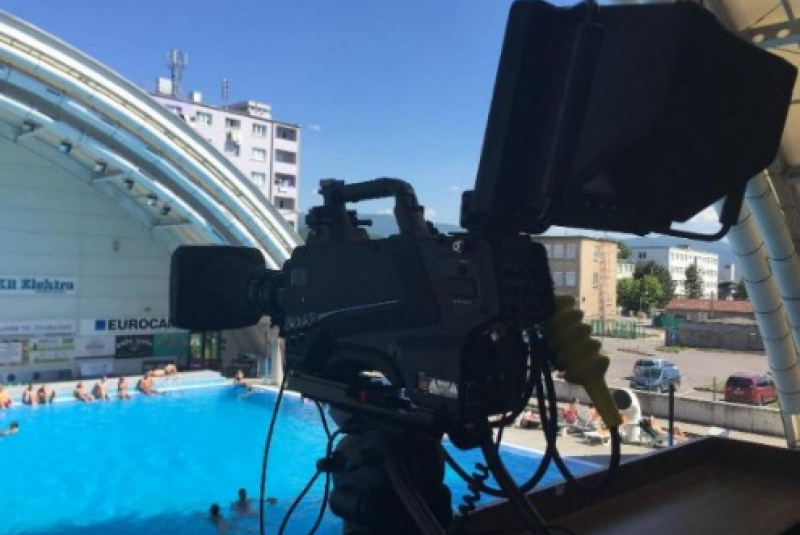

CAMERA SYSTEMS

• 6x AK-UC3000 Panasonic 4K PROFESSIONAL Studio Camera
  • 6x AK-UCU500 Camera Control Unit
  • 6x AK-HRP1000 Remote Operation Panel
  • 6x AK-HVF100 Large 10" LCD Color Viewfinder
  • 1x AJ-HVF21KG 2" B&W Electronic Viewfinder
  • 4x XA20x8.5BERM Fujinon lens with extender
  • 4x EPD-21A + FSP-13G digital servo focus remote system
  • 4x SRD-92B remote zoom demand with speed adjustment
  • 2x ZA12x4.5BRD Fujinon Wide-Angle lens
  • 2x ERD-20A remote zoom demand with speed adjustment
  • 2x EPD-21A digital servo focus remote
• 6x Libec 850 Two Hand Tripod System
• Up to 12x 250m Hybrid Camera Cable SMPTE 311 with Lemo connectors ​

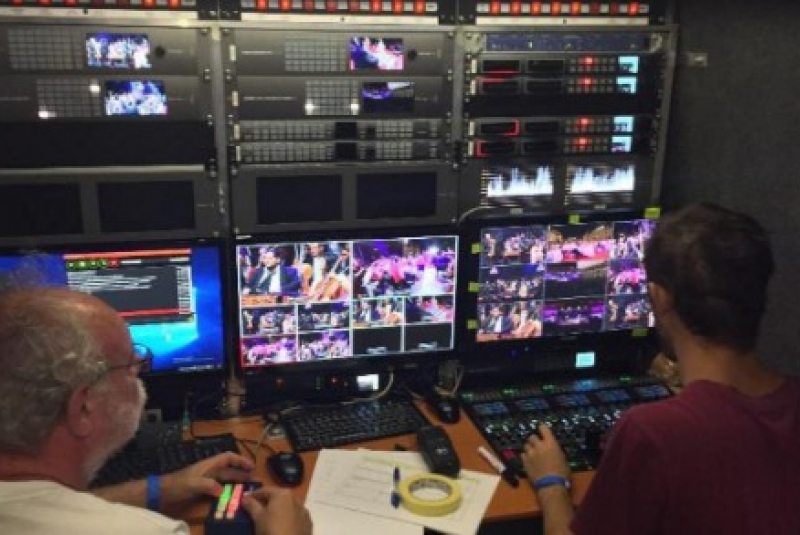

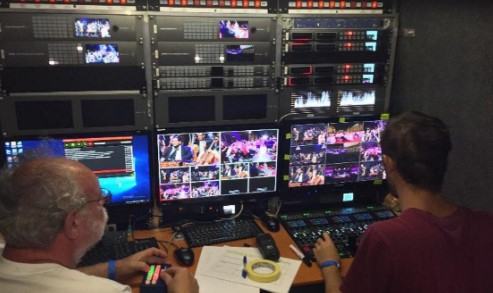

VISION CONTROL AREA

• 2x Smart Videohub 12G 40x40
• 3x Teranex Express Cross Video Converter
• 1x Color Correction LCD Monitor
• 3x SmartScope Duo 4K/UHD dual LCD monitor with measurement
• 2x 4K/UHD MultiView 10+10 channels
• 4W intercom system

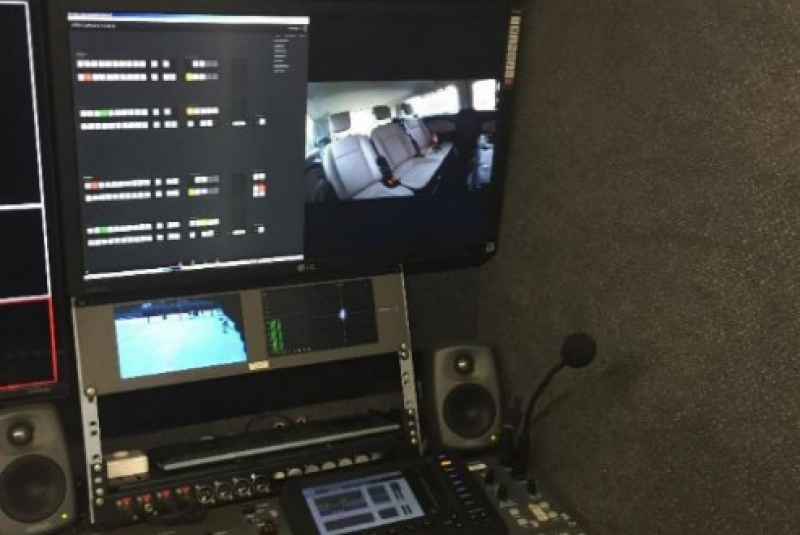

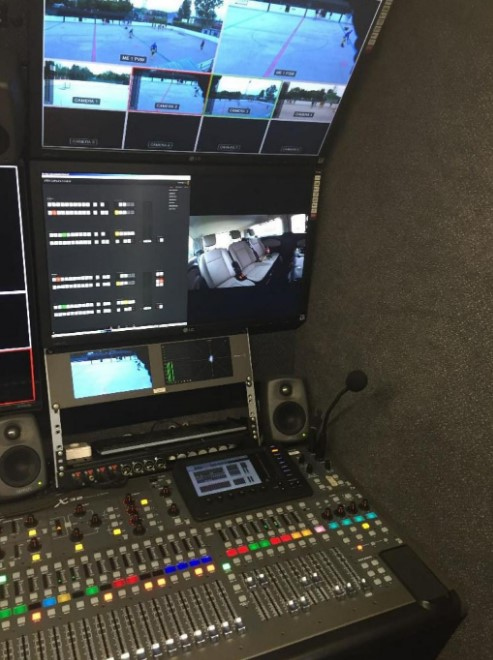

AUDIO AREA

• 1x Behringer X32 Digital Audio Mixer
  • 40x Input, 25-Bus Digital Mixing Console
  • 32 Programmable MIDAS Preamps
  • 25 Fully Automated Motorized 100mm Faders with Channel LCD's
  • 32x32-Channel Audio Interface with DAW remote control
  • 16 XLR outputs plus 6 additional line in/outputs
  • High-resolution 7" day-viewable Color TFT display
  • 6 matrix buses and 16 mix buses with full dynamics processing
  • Virtual FX rack featuring 8 true-stereo FX slots
  • 40-Bit floating-point DSP features with near-zero overall latency
• 1x Digital Stagebox 8IN/8OUT with AES50 for ultra-low jitter and latency
• 1x Digital Stagebox 16IN/8OUT with AES50 for ultra-low jitter and latency
• 1x KlarkTeknik optical AES50 Extesion with 200m fibre cable
• 1x SmartScope Duo 4K/UHD dual LCD monitor with audio measurement
• 1x Mac Mini 1x RME Digital Audio Converter 2x Four channel Audio Embedder
• 2x Four channel Audio DeEmbedder 6x EFL microphone on each camera
• Commentary system – 2x BD Headset, 2x Monitor Mixer, PGM Video Monitor
• Stereo Sound System Genelec 8010

STREAMING AREA

• 1x MPEG-4 AVC / MPEG-2 IP QVidium Encoder with DVB Compilant IP output
  • MPEG-4 AVC High Profile 4:2:0, 256 Kbps to 20 Mbps TS bit rates
  • MPEG-2 Video MPEG-2 4:2:0, 900 Kbps to 20 Mbps TS bit rates
  • Patented feed-back based error correction (ARQ)
  • Video transport over any IP network, including wireless and mobile
  • HD Format Support: 720p50, 1080p25, 1080p50, 1080i50
  • Possibility HD to SD down scale
• 1x NVS-25 H.264 Streaming Video server for Live WEB CDN Streaming
  • RTP, RSTP, Flash protocol
  • H.264/AVC High Profile Level 4.0 up to 6 Mbps, USB Stream recording
